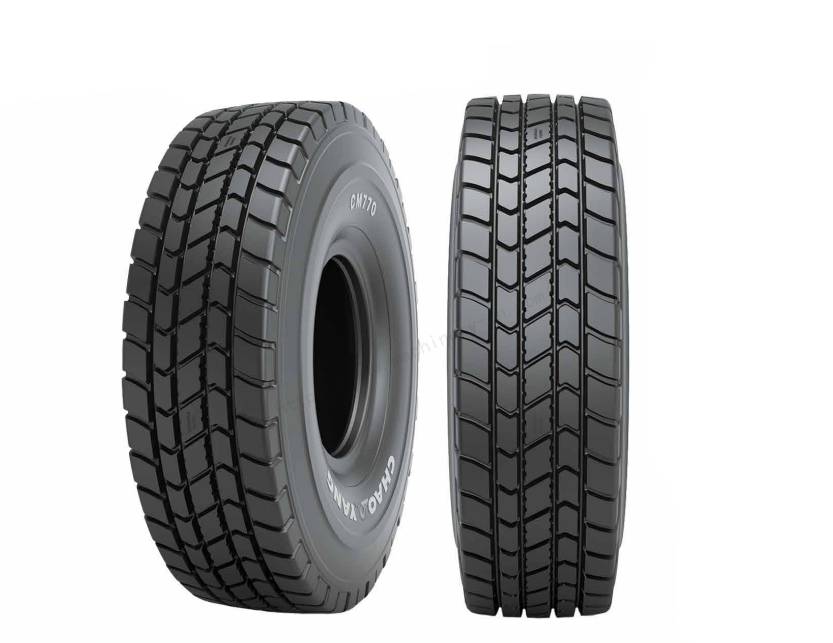

CHAOYANG Crane tyres CM770
- Longitudinal straight ditch design to improvevehicle driving stability, effective anti-sideslip,strong handling, high speed performance.
- The latest low heat generation formula, suitable for highway driving.
- The body adopts the latest steel wire material, which has stronger bearing capacity.
Description
| Pattern | Size | Star Rating | Type | OTD(mm) | STANDARD RIM | Load index | Approximate Inflated Dimensions(mm) | Load | Pressure | |||
| SW | OD | kg | LBS | kPa | PSI | |||||||
| CM770 | 385/95R24 | ★★★ | TT | 24.0 | 10.00/1.5 | 170F | 379 | 1369 | 6000 | 13200 | 900 | 131 |
| 385/95R25 | ★★★ | TL | 24.0 | 10.00/2.0 | 170F | 379 | 1369 | 6000 | 13200 | 900 | 131 | |
| 395/85R20 | 20 | TL | 17.5 | 10.00 | 170F | 386 | 1180 | 6000 | 13200 | 900 | 131 | |
| 445/95R25 | ★★★ | TL | 28.0 | 11.25/2.0 | 174F | 435 | 1481 | 6700 | 14800 | 900 | 131 | |
| 505/95R25 | ★★★ | TL | 26.0 | 13.00/2.5 | 186F | 510 | 1595 | 9500 | 20900 | 900 | 131 | |
