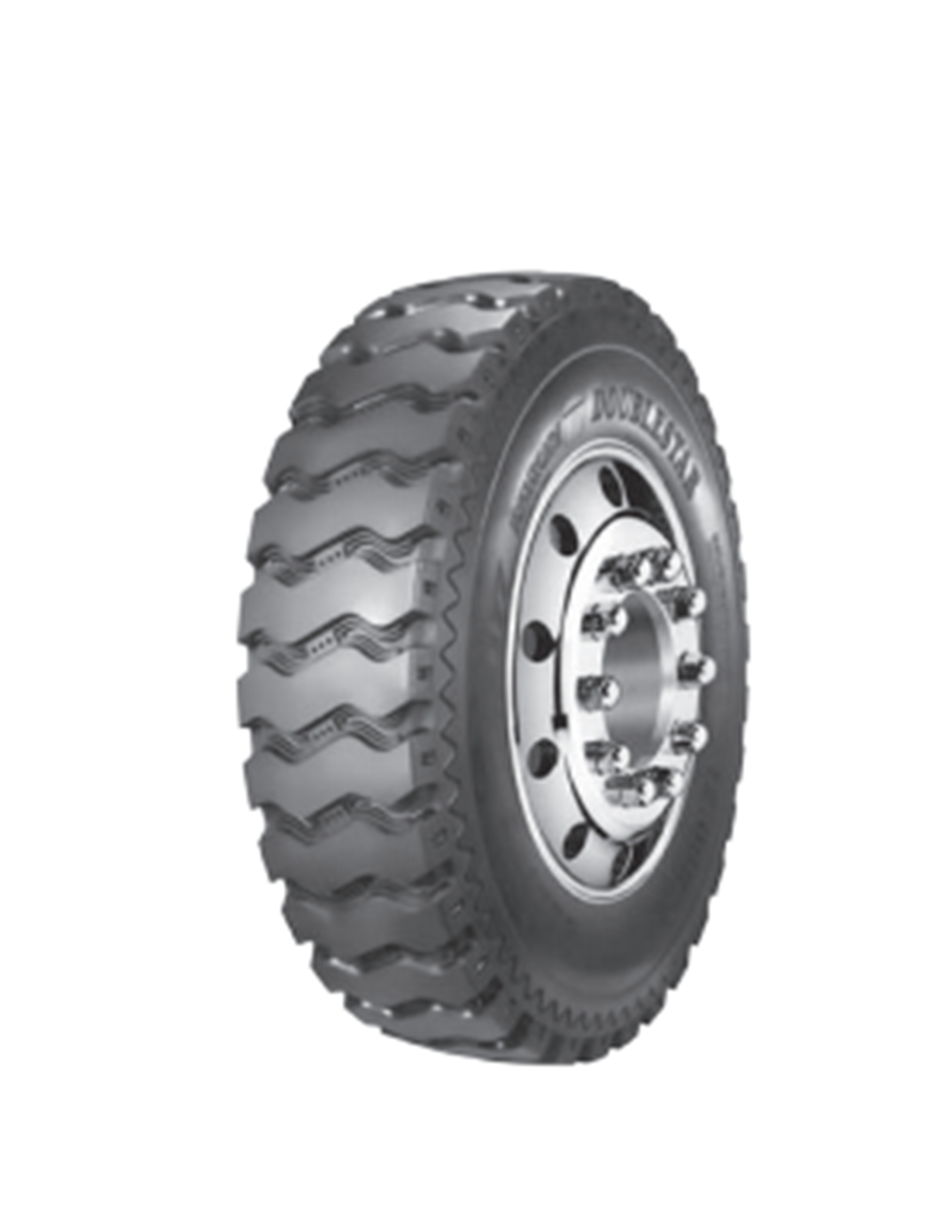

DOUBLE STAR Off road tyres DSR177

DOUBLE STAR Off road tyres DSR177

Stronger carcass,longer service life.

Big block deeper pattern is speciallydesipned for mining road, making the tread more stronger.

Stronger loading capability.

The carcass uses high strength steel wire which is 1.15 time stronger than normal steel wire,Loading capacity is stronger.

Excellent driving and grip performance.

The grooves bottom is designed with ste psand special heat dissipation holes, whichim proves the grip and driving iorce.

Category: Off road tyre

Description
Reviews (0)

Description

Pattern	Size	PR	Tread Depth		Standard Rim	Pressure(kPa)		Max.Load(kg)		Load Index		Speed Grade	Inflated Diameter
			Tread Depth			Pressure(kPa)		Max.Load(kg)		Load Index			mm		inch
			mm	1/32in		Single	Dual	Single	Dual	Single	Dual		Overall Diameter	Section Width	Overal Diameter	Section Width
DSR177	7.50R16	14	18.3	23	6.00G	770	770	1500	1320	122	118	B	805	215	32	8
	8.25R16	14	20.3	26	6.50H	670	670	1700	1500	126	122	B	855	235	34	9
	8.25R16	16	20.3	26	6.50H	770	770	1800	1600	128	124	B	855	235	34	9
	8.25R20	16	20.3	26	6.50	930	930	2430	2300	139	137	B	974	236	38	9
	9.00R20	16	20.3	26	7.00	900	900	2800	2650	144	142	B	1019	259	40	10
	10.00R20	16	22.3	28	7.50	830	830	3000	2725	146	143	B	1054	278	41	11
	10.00R20	18	22.3	28	7.50	930	930	3250	3000	149	146	B	1054	278	41	11
	11.00R20	18	25.0	31	8.00	930	930	3550	3250	152	149	B	1085	293	43	12
	11.00R20	18	25.0	31	8.00	930	930	3550	3250	152	149	B	1085	293	43	12
	11.00R20	18	25.0	31	8.00	930	930	3550	3250	152	149	B	1085	293	43	12
	11.00R20	18	25.0	31	8.00	930	930	3550	3250	152	149	B	1085	293	43	12
	12.00R20	18	25.8	33	8.50	830	830	3750	3450	154	151	B	1125	315	44	12
