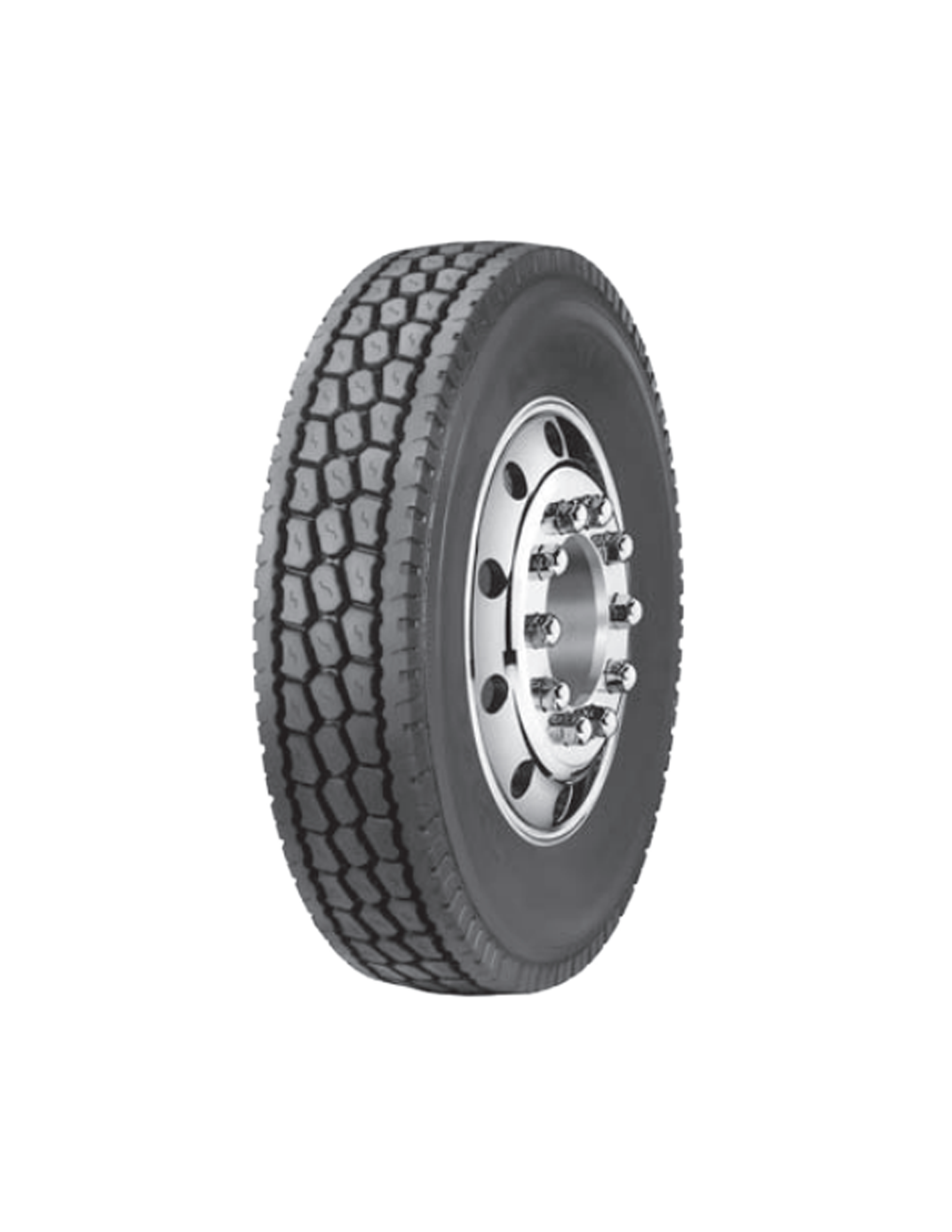

DOUBLE STAR Long haul tyres DSR768
Low heat generation,high mileage.
Deeper groove design and low heat generation compound, provide higher mileage and low fuel consumption.
Execellent loading capability,longer service life.
Strengthened bead design provides better loading capability and longer service life.
Stronger carcass,retreadable.
High fexion carcass ensures durability and retreadability。
Description
| Pattern | Size | PR | Tread Depth | Standard Rim | Pressure(kPa) | Max Load(kg) | Load Index | Speed Grade | Inflated Diameter | |||||||
| mm | inch | |||||||||||||||
| mm | 1/32in | Single | Dual | Single | Dual | Single | Dual | Overall Diameter | Section Width | Overall Diameter | Sectior Width | |||||
| DSR768 | 11R22.5 | 14 | 20.5 | 26 | 8.25 | 720 | 720 | 2800 | 2650 | 144 | 142 | M | 1065 | 279 | 42 | 11 |
| 11R22.5 | 16 | 20.5 | 26 | 8.25 | 850 | 850 | 3150 | 2900 | 148 | 145 | L | 1054 | 279 | 41 | 11 | |
| 11R24.5 | 14 | 20.5 | 26 | 8.25 | 720 | 720 | 3000 | 2725 | 146 | 143 | M | 1104 | 279 | 43 | 11 | |
| 11R24.5 | 16 | 20.5 | 26 | 8.25 | 830 | 830 | 3250 | 3000 | 149 | 146 | M | 1104 | 279 | 43 | 11 | |
| 285/75R24.5 | 14 | 22.5 | 28 | 8.25 | 760 | 760 | 2800 | 2575 | 144 | 141 | M | 1050 | 283 | 41 | 11 | |
| 285/75R24.5 | 16 | 22.5 | 28 | 8.25 | 830 | 830 | 3075 | 2800 | 147 | 144 | M | 1050 | 283 | 41 | 11 | |
| 295/75R22.5 | 14 | 20.5 | 26 | 9.00 | 760 | 760 | 2800 | 2575 | 144 | 141 | M | 1014 | 298 | 40 | 12 | |
| 295/75R22.5 | 16 | 20.5 | 26 | 9.00 | 730 | 730 | 3000 | 2725 | 146 | 143 | M | 1014 | 298 | 40 | 12 | |
| 315/70R22.5 | 18 | 21.3 | 27 | 9.00 | 850 | 850 | 3550 | 3150 | 152 | 148 | M | 1014 | 312 | 40 | 12 | |
| 315/80R22.5 | 18 | 18.8 | 26 | 9.00 | 830 | 830 | 3750 | 3450 | 154 | 151 | L | 1076 | 312 | 43 | 12 | |
| 12R22.5 | 16 | 18.8 | 26 | 9.00 | 830 | 830 | 3350 | 3075 | 150 | 147 | L | 1085 | 300 | 43 | 12 | |
| 12R22.5 | 18 | 18.8 | 26 | 9.00 | 930 | 930 | 3550 | 3250 | 152 | 149 | L | 1085 | 300 | 43 | 12 | |
