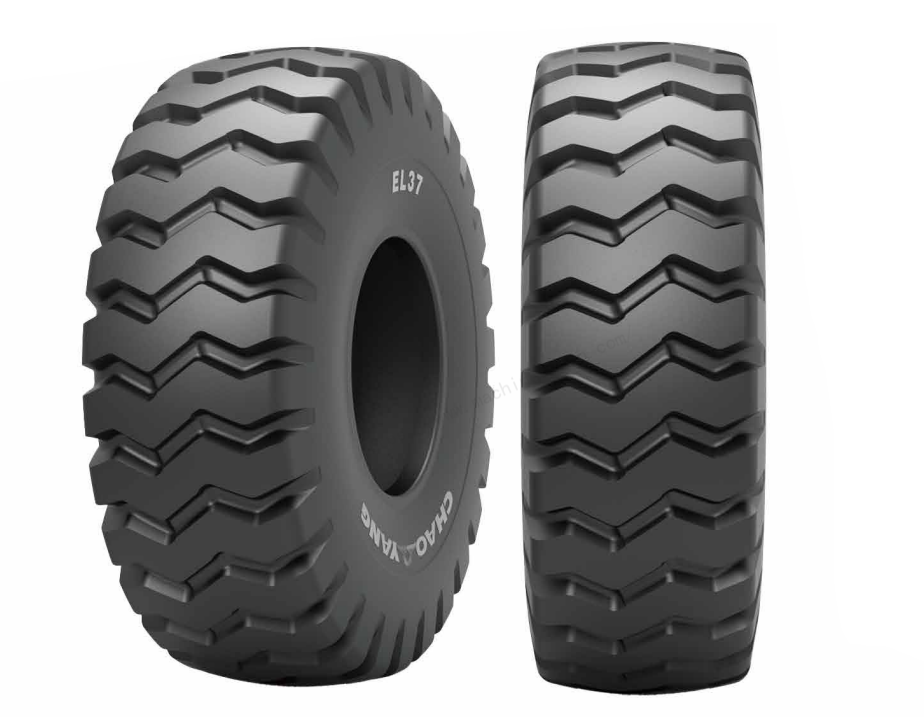

CHAOYANG Mini excavator tyres EL37
- E3/L3 classic pattern,cost-effective design.
- Optimize the pattern groove design,improve the traction force and opyimize the contour by finite element analysis.
Description
| Pattern | Size | Star Rating | Type | TRA Code | OTD(mm) | STANDARD RIM | Approximate Inflated Dimensions(mm) | Load | Pressure | |
| SW | OD | kg | kPa | |||||||
| EL37 | 16/70-20 | 16 | TT | L-3 | 20.00 | 13SDC | 410 | 1075 | 5484/3125 | 500/400 |
| 18 | TT | L-3 | 20.00 | 13SDC | 410 | 1075 | 5800/3350 | 550/450 | ||
| 20.5/70-16 | 14 | TT | L-3 | 20.00 | 10.00F | 354 | 935 | 2700 | 325 | |
